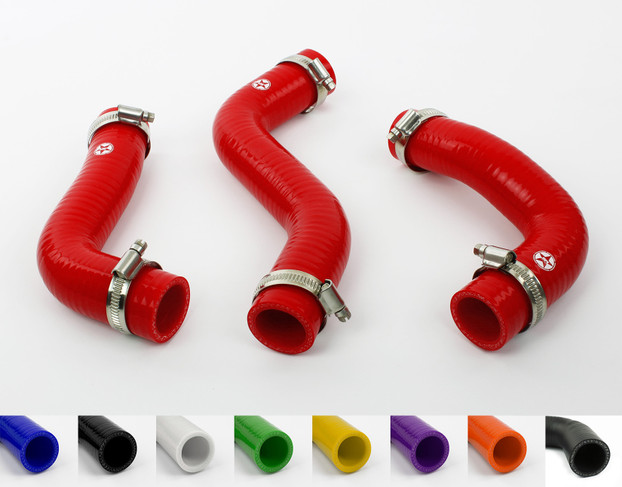

Stoney Racing Silicone Silicone Radiator Hose Kit for Mazda MX5 (Eunos / Miata) Mk1 (NA) 1.6 1989-1998

This high quality reinforced silicone hose kit replaces the upper and both lower radiator hoses in the engine bay as listed below. The hoses fit all Mx5 MK1 1.6 models.

1. Upper Radiator Inlet Hose
2. Lower Radiator Outlet to Hard Pipe Hose
3. Lower Radiator Hard Pipe to Block Hose

Hose Clamps:

The kit is available with a full set of hose clamps using the options above. The three types of clamp on offer are shown below, but not all options will appear for some kits due to size limitations:

Worm-Drive clamps have slightly less evenly distributed clamping force as the Spring type clamps, but they are still a good quality clamp and usually easier to fit/remove in the tight confines of an engine bay. Being 100% stainless steel they do not rust, so we recommend this type of clamp if you are concerned about the appearance of your engine bay.

Spring clamps are the most commonly used type by vehicle manufacturers. They provide excellent evenly distributed clamping force and are generally the best option for clamping coolant hoses, but they can be fiddly to fit/remove, and being mild steel they are more prone to surface rust over time. Whilst this won’t affect the performance or lifespan of the clamp some customers prefer a stainless steel option which tend to look better and still perform as they should.

T-Bolt clamps are the most heavy duty clamps we supply, and are also 100% stainless steel to prevent rust. However they are much more expensive and, like the Worm-Drive clamps provide a slightly less evenly distributed clamping force than the Spring clamps. For this reason we recommend using them for Turbo applications (intercooler/intake hoses) where high boost can cause hose blow-off’s and the additional clamping force is useful.

For some vehicles the original clamps can be reused so there is also an option for no clamps required, but please be aware these silicone hoses are slightly thicker than the standard hoses so in some cases the original clamps may be too small.

Specification:

• Application: Mazda Mx5/Miata/Eunos NA (MK1) Chassis ’89-’98 | 1.6 B6-ZE Engine | Manual & Automatic Transmissions | RHD & LHD Models
• Construction: ~4.5mm 4-ply silicone with 3-ply polyester reinforcing
• Max Operating Pressure: >7bar
• Burst Pressure: >10bar
• Operating Temperature range: -50°c to 180°c
• Warranty: 3 Years (UK based)

Note: Some types of coolant are not compatible with silicone hoses. Please click here to download Stoney Racing’s Important Fitting Notes before buying and fitting silicone hoses.
